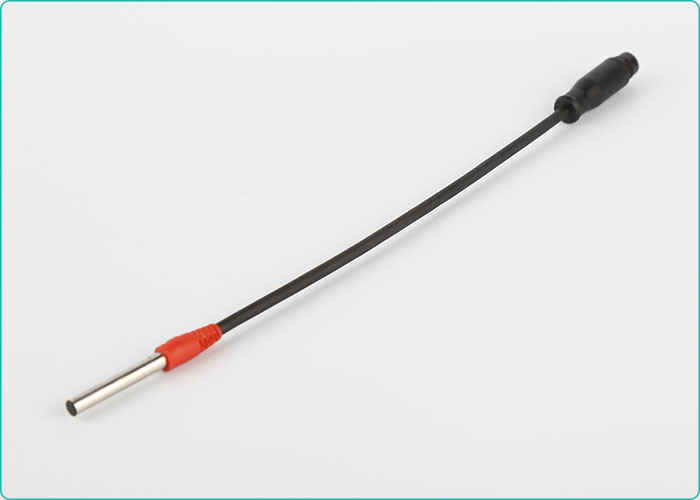

6mm Head NPN NO 1mm Metal Sensing Flush Inductive Sensor M8 Connector

Product Categories

F&C Sensing Technology (Hunan) Co.,Ltd

Contact Now

Brand Name : F&C

Model Number : F3C-06KS01-P/15D R2M

Certification : CE RoHS

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : Western Union, T/T

Supply Ability : 10000Pcs Per Month

Delivery Time : 10days after depsite

Packaging Details : Standard export Package

Output Method : PNP NO Normal Open

Detection Distance : 1mm

Sensing Object : iron , steel

Operating Voltage : 12-24VDC+/-10%

Response Frequency : 800HZ

Polarity Reverse Protection : Yes

Protection Grade : IP67

Operating Temperature : -25~70℃

Material : SUS304

Contact Now

Sensing Distance	1mm
Standard Object	8×8×1(iron)
Response Frequency	800Hz
Hysteresis	≤10% sensing distance
Operating Voltage	12~24VDC±10% (customize 5V)
Current Consumption	≤8mA (No Load)
Load Current	100mA Max at 24Vdc
Circuit Protection	Polarity Reverse Protection and Short-Circuit Protection
Operating Temperature	-20°C~+70°C
Material	SUS304

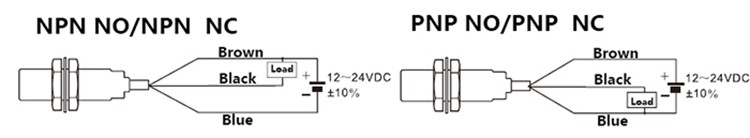

Wiring method	2M/3-wires
Protection degree	IP67
